THAM05

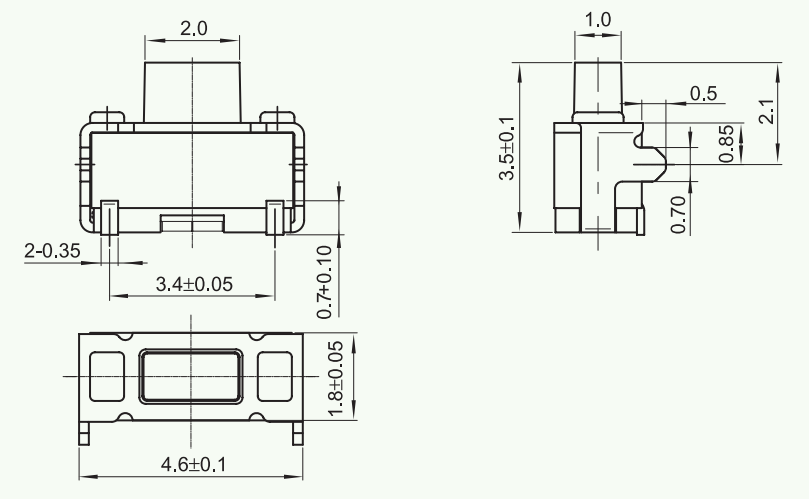

Miniature size 4.6x2.3mm
Horizontal push type
Reflow Solderable
Fixed pillar available

Major home appliances
Distribution boards
Storage batteries
Office equipment

Items		Standard
Operating temperature range		-30℃ to +85℃
Electrical performance	Rating	50mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	A:B:E=50,000Cycles C=30,000Cycles
Mechanical performance	Operating force	A:90gf B:180gf C:250gf E:140gf
Mechanical performance	Travel	0.2±0.1mm
