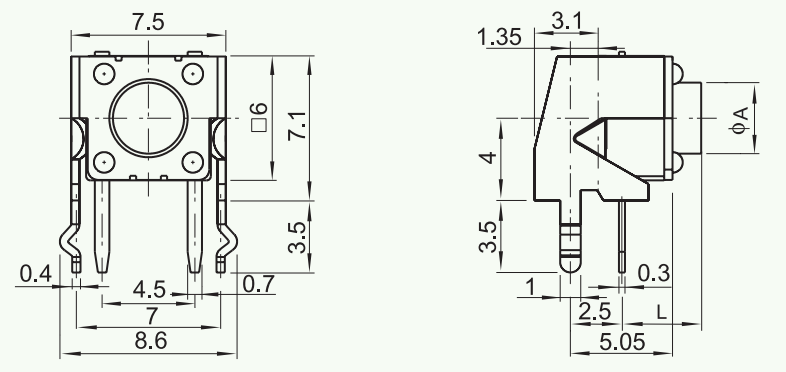

THDP08

Snap-in type
Anti-ESD ground pin available
Cap available
Multiple button length

Visual
Audio
Pro audio

Items		Standard
Operating temperature range		-40℃ to +90℃
Electrical performance	Rating	50mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	A:B:D:E:J:F=1,000,000Cycles C:G=500,000Cycles H=300,000Cycles
Mechanical performance	Operating force	A:90gf D:70gf B:180gf E:130gf J:160gf F:210gf G:320gf H:400gf C:250gf
Mechanical performance	Travel	0.25±0.1mm
