THAM21

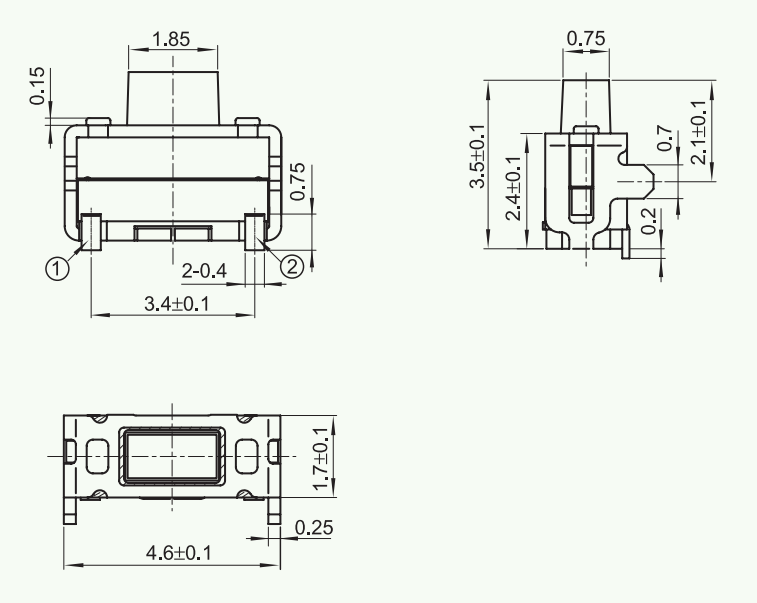

Miniature size 2.4x4.6mm
Dustproof sealed structure
Reflow solderable
Vertical push type

Smartphones, tablets
Headsets, wearables
Notebooks, peripherals

Items		Standard
Operating temperature range		-30℃ to +85℃
Electrical performance	Rating	50mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	A:B:E=100,000Cycles C=30,000 Cycles
Mechanical performance	Operating force	A:90gf B:180gf C:250gf E:140gf
Mechanical performance	Travel	0.15±0.1mm
