TVAU10

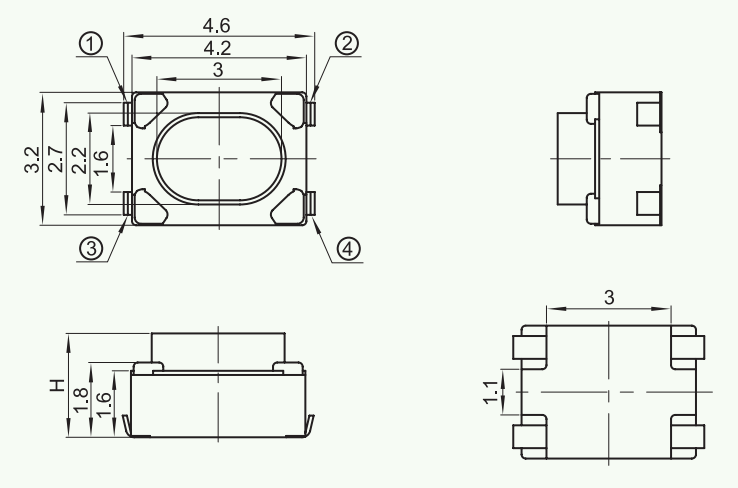

Compact size 3.2x4.2mm
Vertical Push type
High operating force
miniature type

Remote keyless entry
Navigation/audio systems
HVAC Overhead consoles
Steering
Shifters

Items		Standard
Operating temperature range		-30℃ to +85℃
Electrical performance	Rating	50mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	500mΩ max.
Durability	Lifetime	B=300,000Cycles C=100,000Cycles H=50,000Cycles
Mechanical performance	Operating force	B:180gf C:250gf H:400gf
Mechanical performance	Travel	0.2±0.1mm
